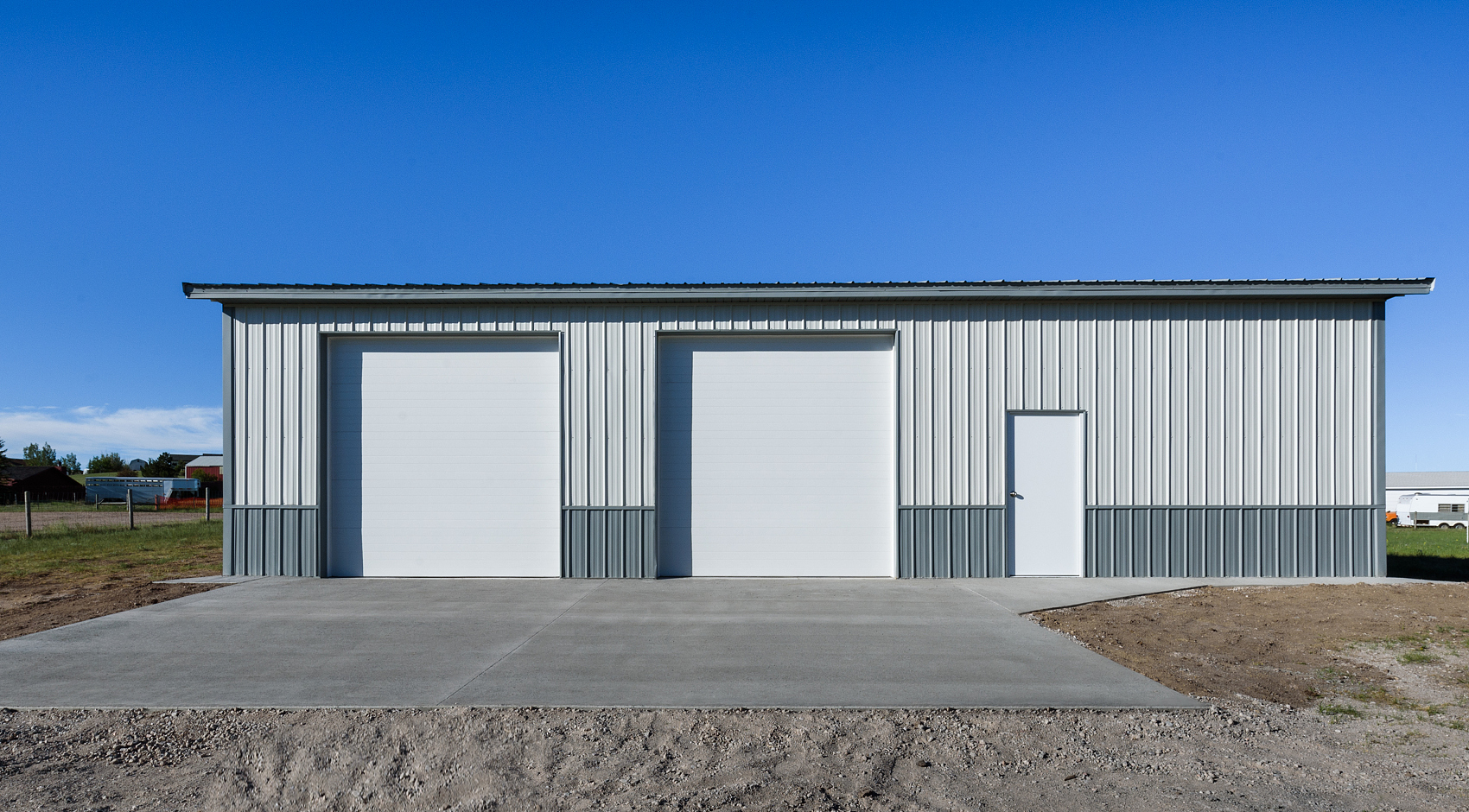

Complete Cladding & Roofing Systems
A strong steel framework is only half the building. YG Steel Structure operates continuous, automated production lines to manufacture high-performance composite sandwich panels and single-layer profiled steel sheets. Our cladding systems ensure your facility achieves optimal energy efficiency, stringent fire ratings, and a stunning architectural finish.

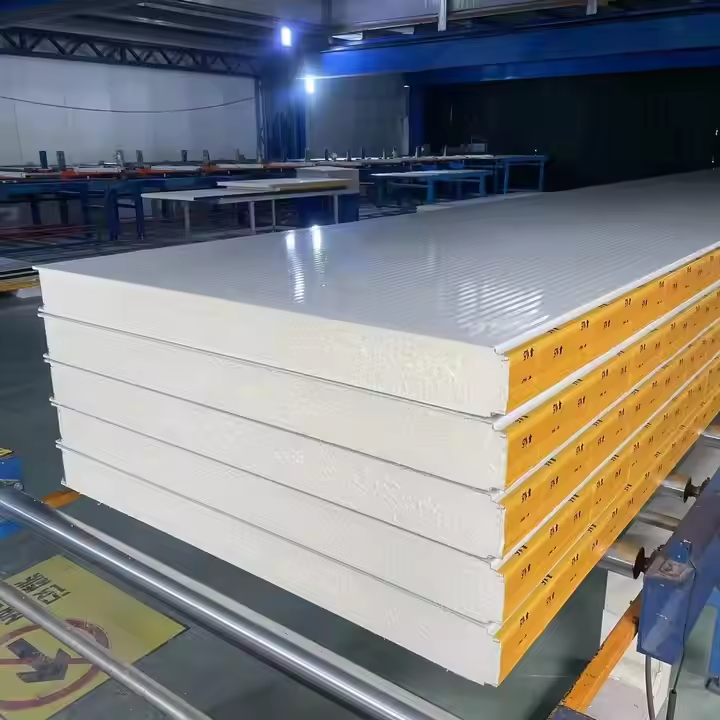

PU / PIR Sandwich Panel
High-density Polyurethane core. Offers the lowest thermal conductivity in the industry for supreme energy savings.
- Core: Polyurethane Foam
- Best For: Cold storage, food processing, clean rooms.
- Fire Rating: B1 / B2

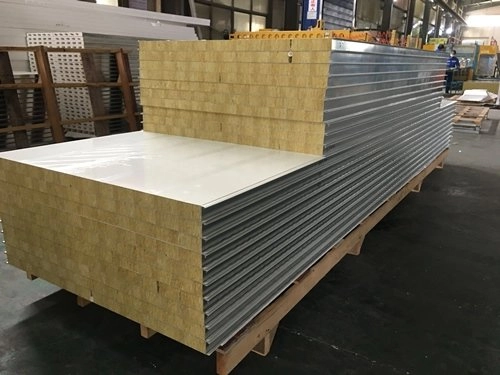

Rock Wool Sandwich Panel
Made from basalt rock fibers. Provides the ultimate fire barrier and excellent acoustic absorption for noisy environments.
- Core: Mineral Rock Wool
- Best For: Public buildings, chemical plants, noisy workshops.
- Fire Rating: Class A (Non-combustible)

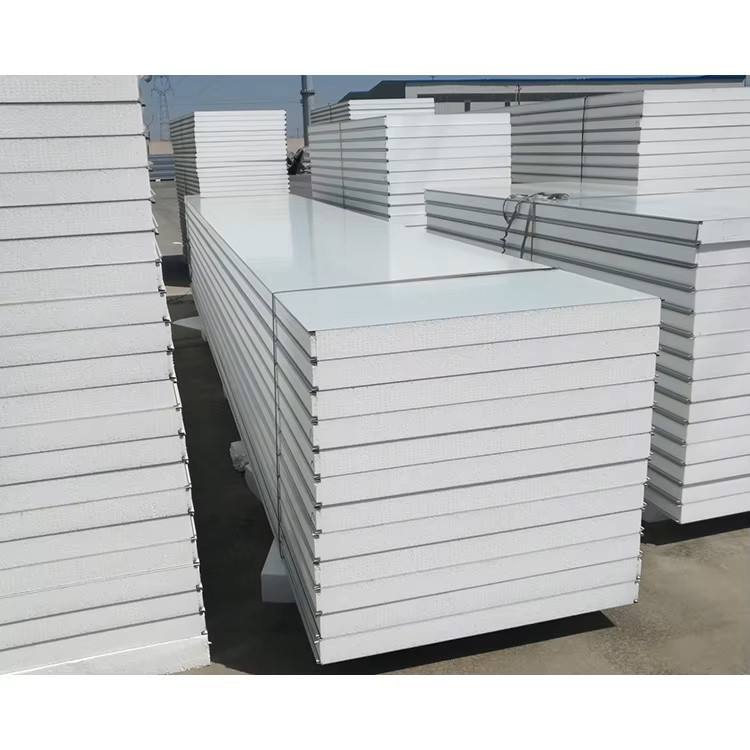

EPS Sandwich Panel
Expanded Polystyrene core. Ultra-lightweight, highly water-resistant, and the most economical insulated panel solution.
- Core: EPS Foam
- Best For: Prefab houses, standard warehouses, temporary offices.
- Fire Rating: B2 / B3

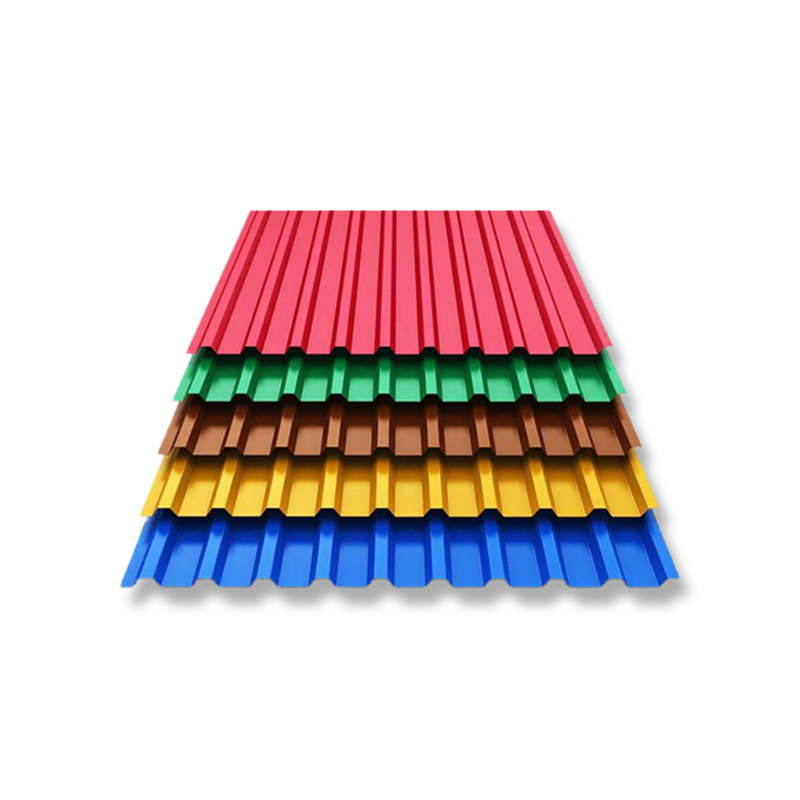

Single-Layer Corrugated Sheet
Prepainted galvanized (PPGI) or galvalume (PPGL) steel sheets. Roll-formed into various profiles for basic weather protection.
- Core: None (Solid Steel)
- Best For: Uninsulated sheds, farm canopies, roofing overlays.
- Thickness: 0.3mm - 0.8mm
Sandwich Panel Selection Matrix
Compare the core technical parameters to select the perfect cladding material for your building's climate, fire safety regulations, and budget.
| Parameter / Type | PU / PIR Panel | Rock Wool Panel | EPS Panel | Single Steel Sheet |
|---|---|---|---|---|
| Fire Rating | Class B1 / B2 (Flame Retardant) | Class A (Non-Combustible) | Class B2 / B3 | Class A |
| Thermal Conductivity (W/m·K) | ≤ 0.024 (Best) | ≤ 0.043 | ≤ 0.041 | None |
| Core Density (kg/m³) | 38 - 42 | 80 - 120 (Heavy) | 8 - 20 (Light) | N/A |
| Water Absorption | ≤ 2% (Excellent) | ≥ 5% (Requires sealing) | ≤ 3% | 0% |
| Acoustic Insulation | Good | Excellent (Sound Absorbing) | Fair | Poor |
| Available Thickness (mm) | 50, 75, 100, 150, 200 | 50, 75, 100, 150 | 50, 75, 100, 150, 200 | 0.3 ~ 0.8 |
| Effective Width (mm) | Wall: 950 / 1000 / 1150 mm | Roof: 950 / 1050 mm | 750 ~ 1050 mm depending on profile | ||
Continuous Production Line
Our fully automated continuous production lines ensure perfect bonding, consistent thickness, and zero-defect output for every square meter of sandwich panel.
Decoiling & Roll Forming
PPGI steel coils are precision roll-formed into corrugated profiles, adding structural rigidity to the metal skins.
Adhesive / Foaming
High-pressure PU liquid foaming or advanced polyurethane adhesive is sprayed evenly to ensure 100% core bonding.
Double Belt Pressing
The sandwich layers enter a heated double belt press, curing the core and ensuring a perfectly flat, seamless panel.
Automated Cutting
Panels are tracked via sensors and cut precisely to your custom length on-the-fly, eliminating waste and speeding up installation.
Premium Steel Coil Coatings
The longevity of a sandwich panel heavily relies on its exterior steel skin. We use high-grade galvanized (Z) or galvalume (AZ) steel coils, coated with multi-layer paints to resist UV fading and chemical corrosion.
-
PE
Polyester (PE)
Standard coating for normal environments. Economical with a 7-10 year color lifespan.
-
HDP
High Durability Polyester (HDP)
Enhanced UV resistance, perfect for areas with intense sunlight. 15-year lifespan.
-
PVDF
Fluorocarbon (PVDF)
The ultimate architectural coating. Highly resistant to chemical corrosion and extreme weather. 20-25+ year lifespan.
Advanced Panel Joint Systems
How panels connect determines the building's waterproof integrity and visual appeal. Our continuous production line forms precise interlocking edges for seamless installation.
Concealed Fastener Wall Panels
Screws are completely hidden within the interlocking joint. Creates a beautifully smooth, architectural flat facade with zero exposed screw heads to rust.
Exposed Fastener Wall Panels
Tongue-and-groove joint secured directly to the purlin with color-matched self-tapping screws. Highly reliable and fast to install for standard workshops.
Overlapping Roof Panels
Deep corrugated ribs with an overlapping wave design. Includes a capillary groove to block wind-driven rain, ensuring 100% leak-proof roofs.
One-Stop Accessories & Flashing Systems
To ensure a 100% waterproof and aesthetically perfect building envelope, we provide a complete set of matching accessories tailored to your specific architectural design. No need to source parts from multiple vendors.
- Color-Matched Edge Flashing & Trims (Corners, Eaves, Ridges)
- Galvanized Steel Gutters & PVC Downpipes
- Self-Tapping Screws & High-Strength Fasteners
- Waterproof Butyl Tape & Silicone Sealants
- Aluminum Profiles (Specifically for Clean Room Panels)
Zero-Damage Ocean Freight Packaging
Sandwich panels are susceptible to scratches and dents during long-distance ocean transit. We employ a rigorous, multi-layered packaging strategy to guarantee flawless arrival.
PE Protective Film
Every single panel is coated with a clear, peel-able PE protective film on both sides to prevent scratching of the paint during manufacturing and installation.
EPS Edge Protectors
The vulnerable interlocking edges (tongue and groove) are buffered with thick EPS foam blocks, absorbing any impact during container stuffing and unloading.
Maximized Container Load
Panels are bundled and strapped securely onto customized steel pallets. We use 40HQ containers and advanced loading software to maximize volume and save your sea freight costs.
