Engineering Delivery Case

1,800 SQM Clear-Span Prefab Steel Structure Warehouse in Australia

Australia · Industrial Storage and Logistics Building

This Prefabricated Steel Structure Warehouse case is presented as an engineering delivery record: from structural concept and specification coordination to fabrication quality controls, protective coating, building-envelope interfaces and handover documentation. It helps overseas EPC teams, consulting engineers and asset owners assess both the warehouse solution and the evidence needed to manage project risk.

Steel Structure Warehouse Construction Site

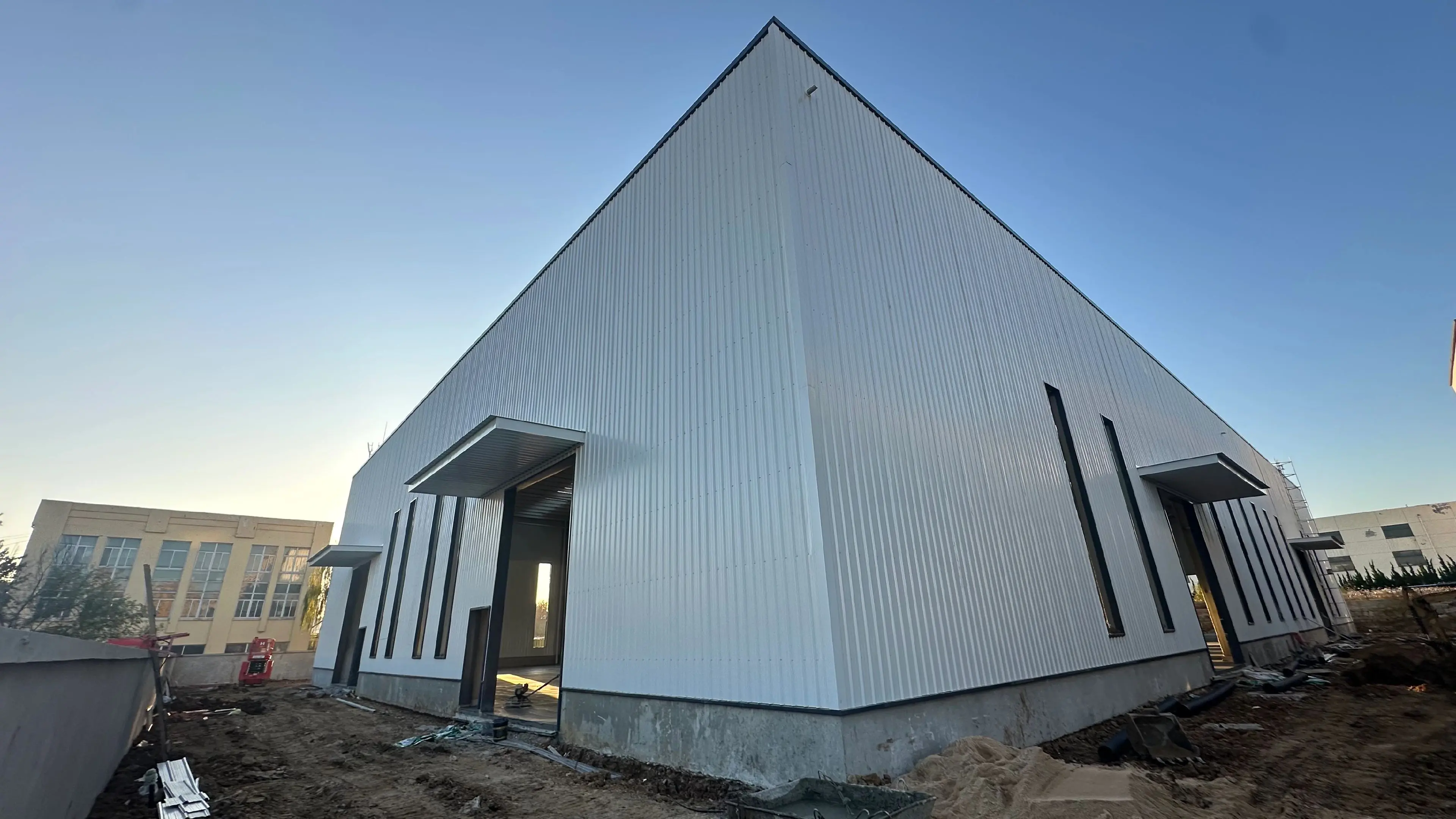

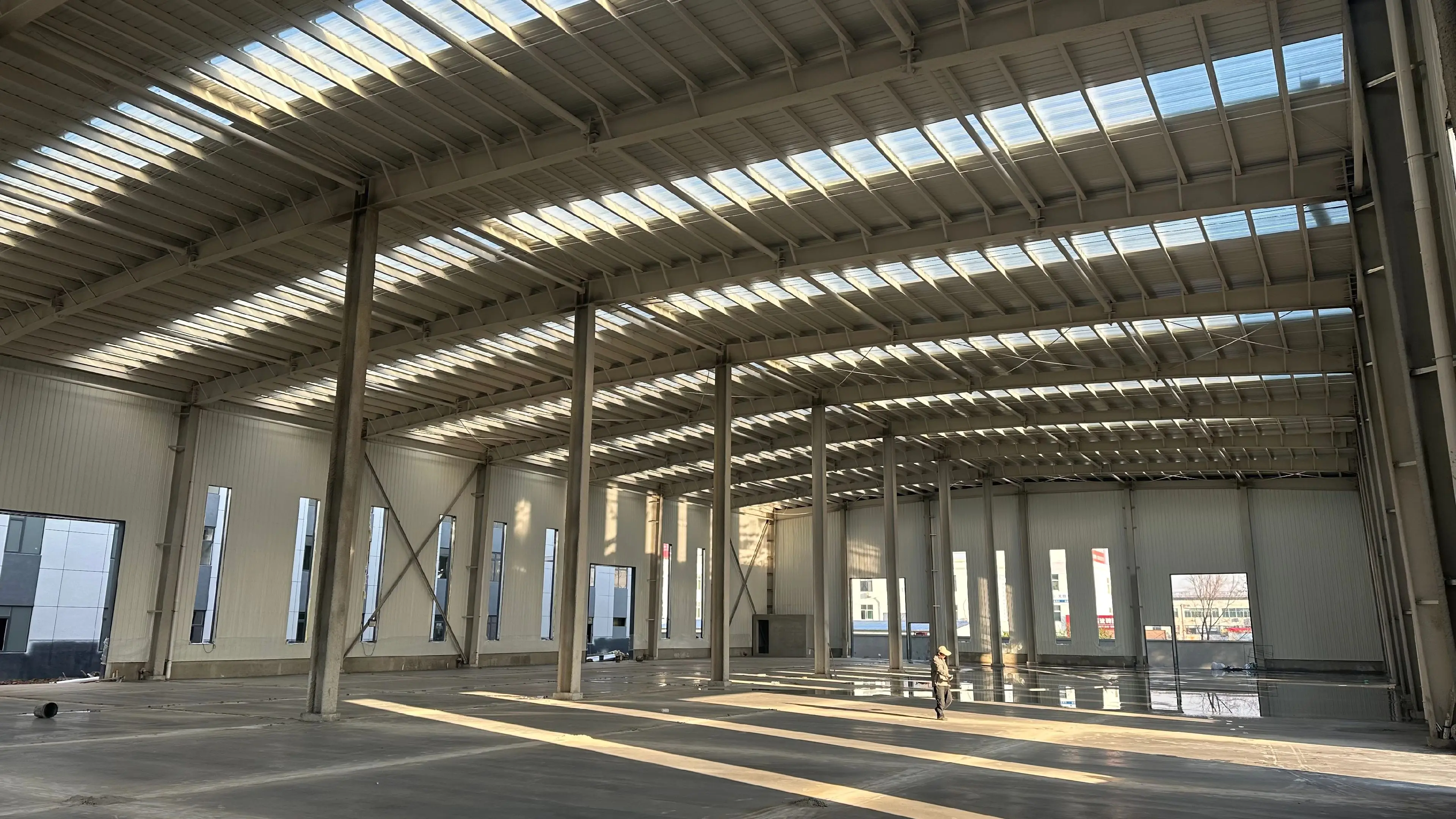

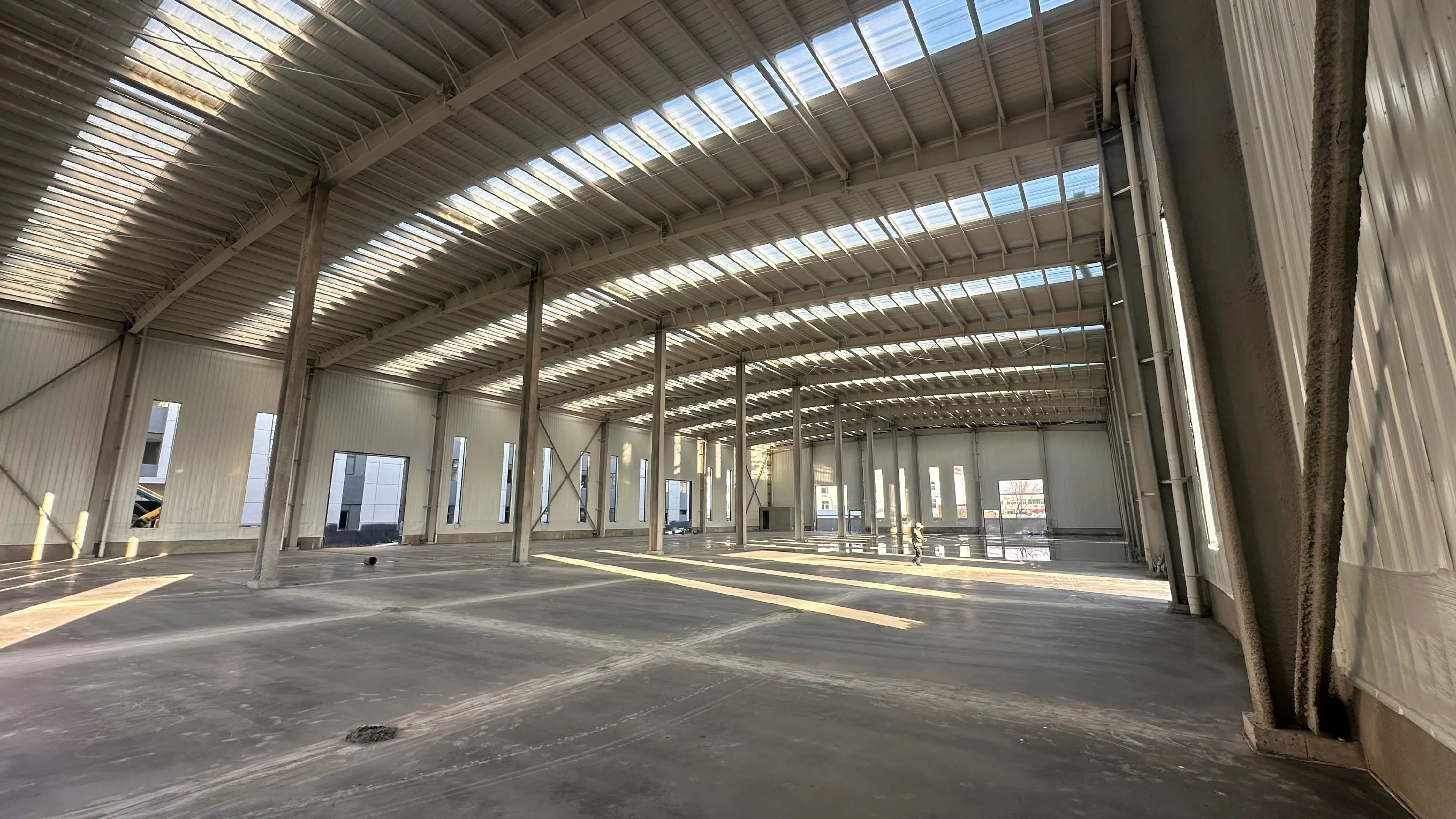

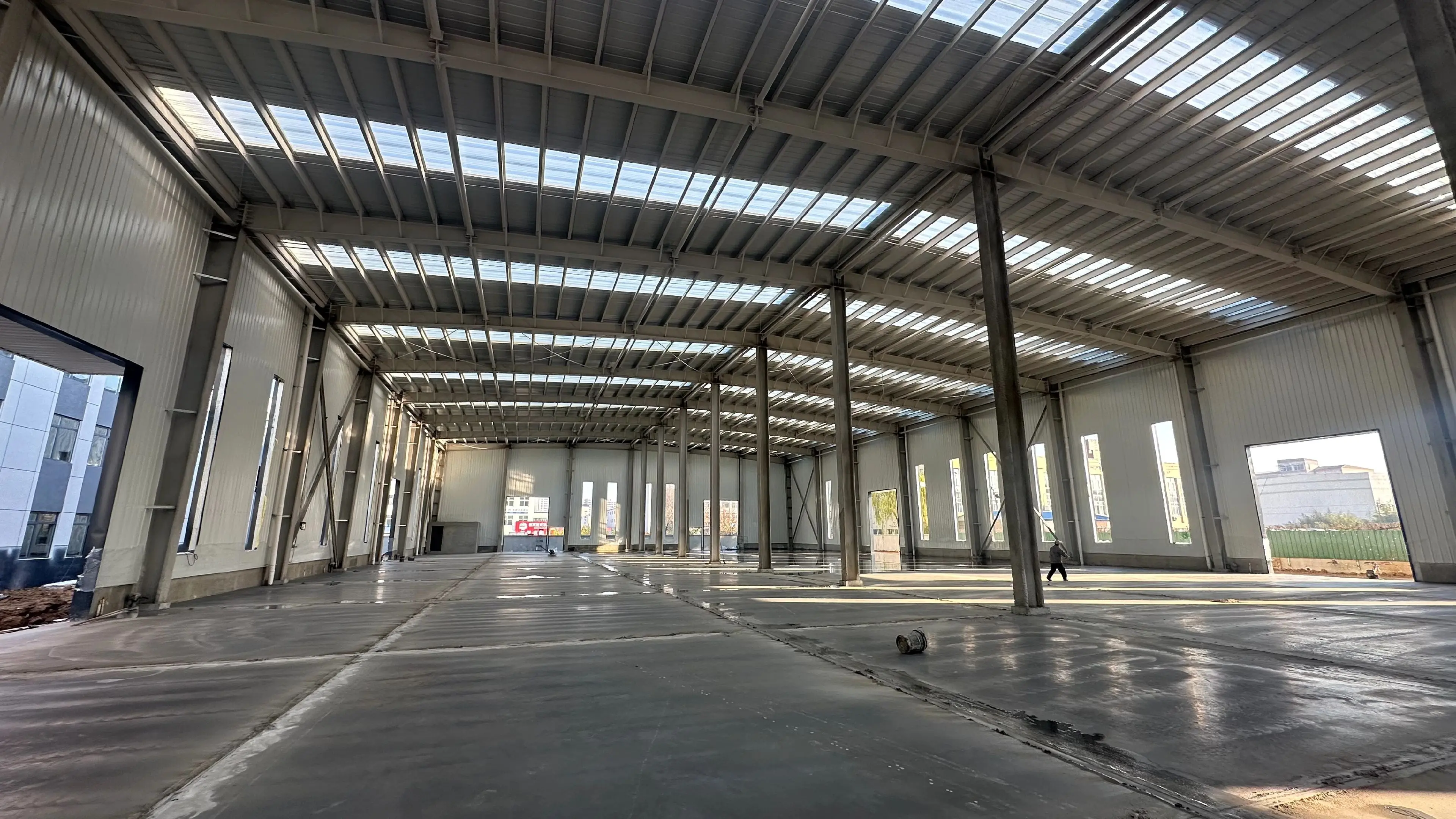

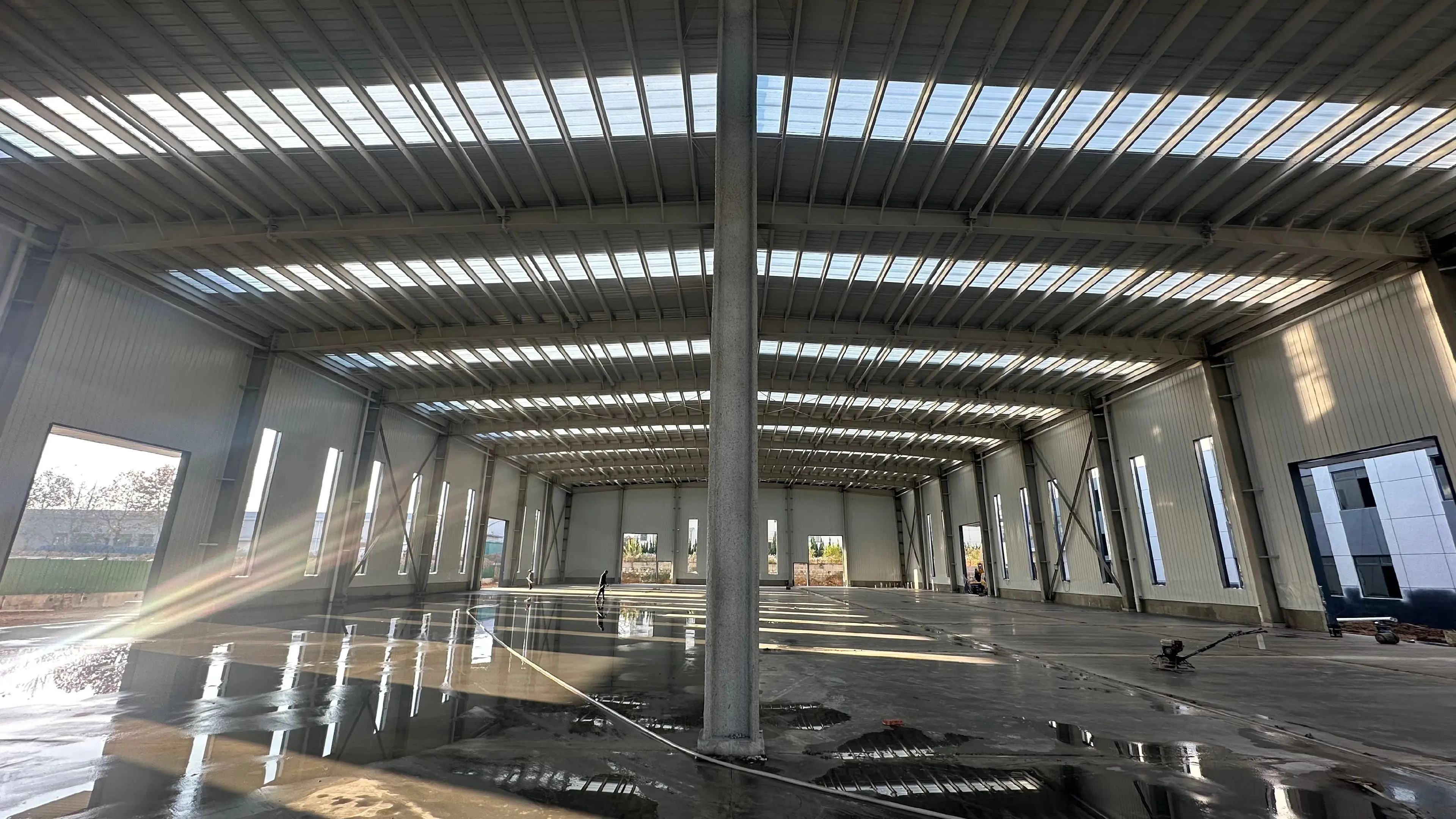

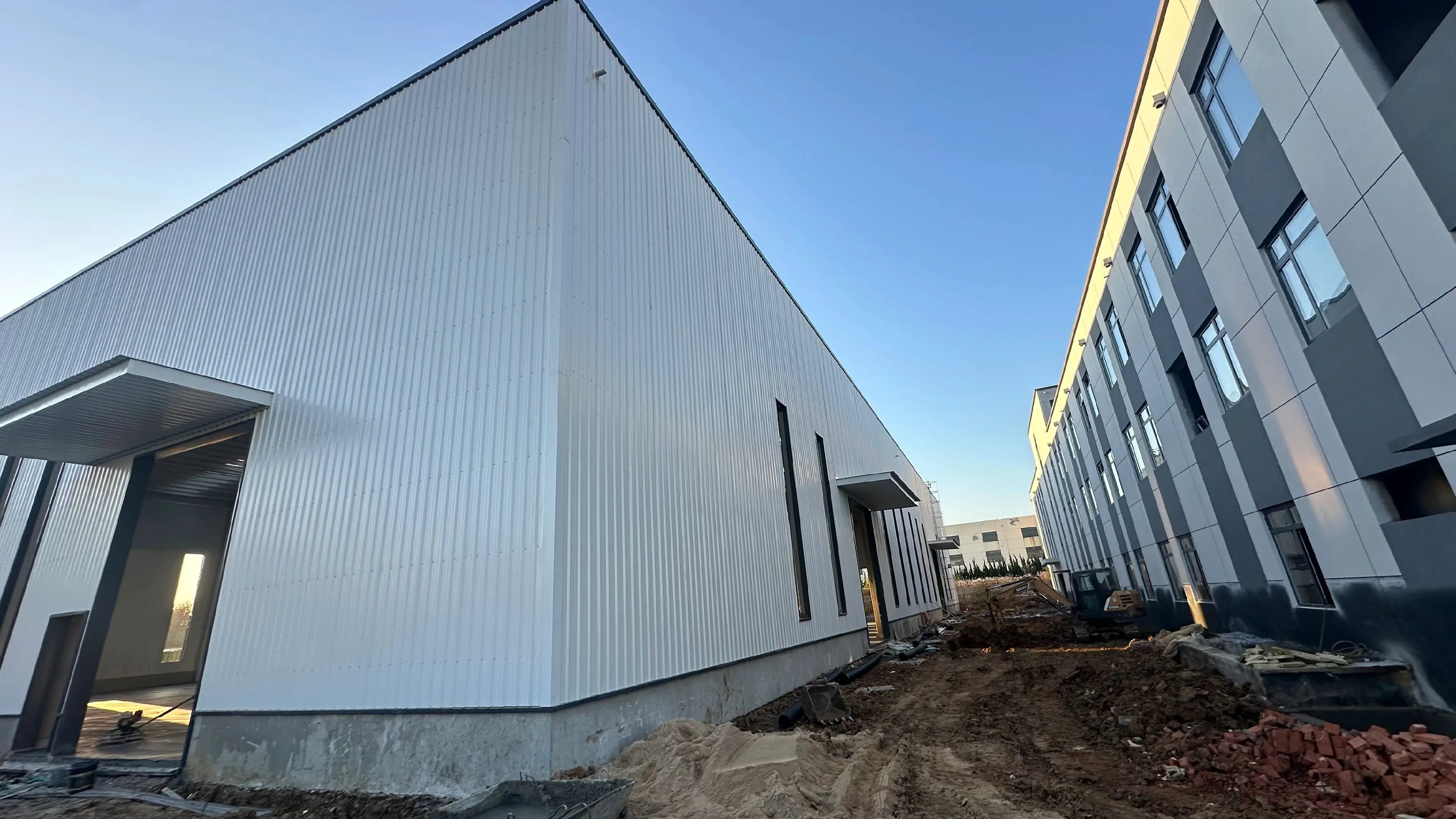

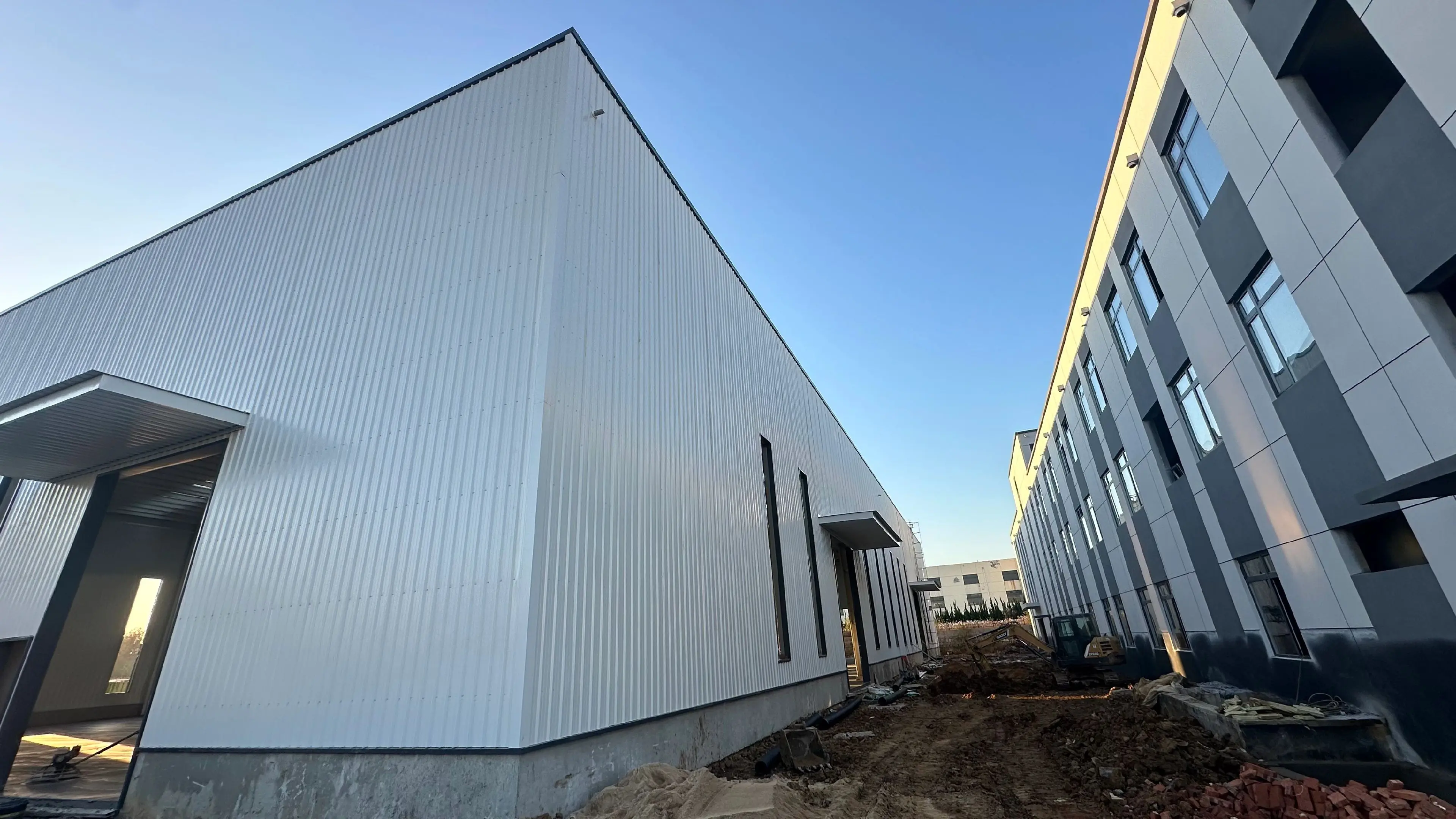

Interior view Steel Framework Portal Frame Warehouse Construction Roofing Structure Exterior Cladding Wall Panels Finished Exterior

Published Building Area

1,800 m²

Project area stated in the case brief

Primary Structural Form

Portal Frame

Steel-framed warehouse solution

Steel Specification Listed

Q355B

Verify against approved material schedule and certificates

Protection System Listed

Multi-coat Paint

Surface preparation and coating records are key evidence

01 · Prefabricated Steel Structure Warehouse: Project Overview and Delivery Objective

This case covers an 1,800 m² Prefabricated Steel Structure Warehouse using a portal-frame structural concept. For an industrial or logistics facility, the delivery objective is broader than supplying steel tonnage: the frame, secondary members, roof and wall envelope, openings, foundations and erection sequence must work as one coordinated system.

A well-managed package gives the owner usable storage volume and maintainable building fabric; gives the EPC contractor defined supply boundaries and interfaces; and gives the engineer a traceable route from design assumptions to fabrication drawings, inspection records and site installation information. The final configuration must follow the project brief and the approved design documents rather than generic warehouse assumptions.

Engineering Documentation & Quality Assurance

Reliable project delivery depends on traceable engineering documentation and clearly defined quality-control procedures. Depending on the agreed project scope, the documentation package may include approved fabrication drawings, material traceability records, inspection reports, protective coating records, packing lists and handover documentation.

02 · Design Basis and Engineering Coordination

The structural solution should be developed against an agreed Design Basis. Before design release, the owner/EPC team and the responsible Australian design professionals should coordinate the intended building use, dimensions, site conditions, applicable code pathway, loads, serviceability limits, durability requirements and approval responsibilities.

Design input / interfaceWhy it mattersEvidence to align
Building geometry and useSets grids, clearances, access and operational requirements.Approved architectural drawings; design brief; opening and equipment schedules.
Site actions and design criteriaInfluences frame members, bracing, connections and serviceability.Site-specific design criteria and signed engineering calculations/drawings.
Foundations and hold-downsTransfers reactions into civil works and controls fit-up risk.Column reactions, base-plate details, anchor-bolt plan and survey tolerances.
Envelope and penetrationsCoordinates purlins, girts, cladding, doors, vents and flashings.Cladding layouts, interface details, approved openings and supplier data.

For EPC delivery, the most valuable engineering output is a coordinated revision set: design criteria, general arrangement, member and connection details, anchor-bolt setting-out information, cladding interfaces and a controlled record of design changes. Any project-specific crane loads, mezzanines, suspended services, solar panels or future expansion requirements should be declared early rather than added after fabrication.

03 · Fabrication Planning and Quality Control

A reliable steel package connects the approved design to identifiable physical components. The control chain should link drawing revision, material identification, cutting and drilling, fit-up, welding, dimensional inspection, surface preparation, coating, packing and shipment. The exact inspection and test plan (ITP) is agreed for the contract and should define inspection stages, acceptance criteria, responsibilities and record retention.

Before fabrication

  • Approved shop drawings and revision control
  • Material list and heat/batch traceability where required
  • Welding and inspection requirements agreed in the ITP
  • Connection, bolt and erection-marking coordination

During and after fabrication

  • Fit-up and dimensional inspection records
  • Welding/NDT records where specified by the project
  • Non-conformance, corrective action and re-inspection trail
  • Piece marks, packing lists and dispatch reconciliation

These records enable an EPC contractor or engineer to trace an installed member back to the relevant drawing and inspection history. Acceptance standards, NDT extent and required certificates must be set by the contract documents and applicable design/quality requirements; they should not be inferred from a photograph alone.

04 · Corrosion Protection and Coating Evidence

The source case description lists Sa 2.5 abrasive blast cleaning, an epoxy zinc-rich primer and polyurethane topcoats. Suitability depends on the actual atmospheric corrosivity, exposure category, design life, maintenance plan, transport conditions and coating manufacturer's requirements. These details should be confirmed in the project coating specification before production.

Coating quality record set

01Approved coating system and product data sheets
02Surface preparation and cleanliness inspection
03Environmental conditions and application records
04Dry film thickness (DFT) readings by agreed sampling plan
05Repair records for handling or transport damage
06Inspection release and traceable non-conformance closure

Paint names alone do not prove durability. The acceptance record should show the specified preparation grade, coating products, required dry-film thicknesses, inspection results and treatment of damaged areas. The final system and target values must be taken from the approved project specification, not assumed from this case summary.

05 · Roof, Wall and Fire-Performance Interfaces

The original case description refers to fire-retardant sandwich panels for the roof and wall envelope. For an Australian project, the required fire, thermal, condensation, weatherproofing and building-class performance must be established by the project design team. A general product description is not the same as evidence of a tested fire-resistance level or code compliance.

Coordination should cover panel type and thickness, support spacing, fastener selection, side/end laps, ridge and eave details, flashings, gutters and downpipes, door and louvre openings, penetrations, insulation continuity and interfaces with fire compartments. Product certificates, test classifications and installation details should be submitted where required by the approval pathway and contract.

06 · Shipping, Site Interfaces and Erection Readiness

Fabrication quality can be undermined by unclear package boundaries or incomplete site information. The handover from factory to site should therefore connect each shipment to erection drawings, piece marks, packing lists, bolt schedules and the agreed erection sequence. Packing, lifting and transport protection should be planned around member dimensions, coating sensitivity, unloading equipment and site storage conditions.

Interface riskRecommended controlRecord / check
Anchor bolts or foundations out of toleranceCoordinate setting-out data and site survey before steel erection.Approved bolt plan; survey results; discrepancy resolution.
Missing or mismatched componentsUse piece-marked packages and reconcile each dispatch.Packing list; loading list; receipt inspection.
Coating damage in transit or on siteSpecify lifting, dunnage, storage and repair methods.Arrival condition report; repair and re-inspection log.
Unclear erection sequence or temporary stabilityAgree sequence, temporary bracing and contractor responsibilities.Erection method statement and relevant lift plans.

07 · The Engineering Handover Evidence Pack

The practical proof of competence is a controlled package of records that allows reviewers to establish what was specified, what was fabricated, what was inspected and what was shipped. The final submittal index should be tailored to the purchase order, inspection plan and local approval requirements.

Evidence itemQuestion it answersPrimary reviewer
Design basis and approved drawingsWas the package designed to the agreed brief and revision?Engineer / EPC
Material certificates and traceability recordsCan supplied steel be matched to the specified material?Engineer / QA-QC
Welding, dimensional and NDT records as specifiedWere the defined fabrication checks completed and accepted?EPC / inspector
Surface preparation and coating reportsDoes the recorded finish meet the approved coating specification?Owner / QA-QC
Packing, dispatch and component listsCan the shipment be checked and erected without ambiguity?Logistics / site team
Deviations, repairs and close-out recordsWere issues documented, resolved and re-checked?EPC / owner / engineer

08 · Value for EPC Contractors, Engineers and Owners

For overseas EPC contractors

Clear package boundaries, revision control, interface schedules and dispatch records help reduce scope gaps between the steel supplier, local civil contractor, erector and envelope trades. The project team can map each deliverable to the purchase order and master schedule.

For consulting and structural engineers

A defined design-basis workflow and traceable fabrication records support design review, technical queries, inspection planning and resolution of deviations. The responsible local engineer retains authority over project-specific design assumptions and statutory approvals.

For owners and asset managers

Material, coating, product and handover records make it easier to assess maintainability, plan future repairs and retain the technical history of the building. Fire and performance claims should be supported by the relevant project and product documents.

Moving from a reference case to a project-specific solution? Review our Prefabricated Steel Structure Warehouse solutions to explore the warehouse package and then define the required dimensions, structural criteria, envelope, interfaces and supply boundaries for your project.

09 · Scope and Verification Note

The case facts published here are limited to the 1,800 m² area, portal-frame form, Q355B steel reference, the stated blast-cleaning and paint-system description, and the stated sandwich-panel envelope. This page does not publish member sizes, load values, design calculations, project-specific code clauses, fire-resistance ratings, coating thickness targets, certificates, inspection results, delivery dates or client acceptance records. Those items must be confirmed from the project document register before being represented as verified outcomes.

For a live tender or project review, use this page as a discussion framework and request the relevant controlled documents under the applicable confidentiality and disclosure arrangements. This keeps the technical review transparent and allows the EPC, engineer and owner to evaluate evidence against their own acceptance criteria.
